HDPE Penstock
HDPE Penstock
Overview
Laminar’s high-performance High-Density Polyethylene (HDPE) Penstocks provide a highly durable, precision-engineered framework for dependable fluid isolation and flow management. Designed to excel under rigorous environments, these modern water control assets serve as reliable alternatives to conventional heavy metallic gates.
Engineered for structural resilience and operational flexibility, our penstocks are widely deployed across stormwater networks, municipal wastewater treatment facilities, industrial process channels, irrigation infrastructure, reservoirs, and dams. By utilizing advanced polymers alongside robust marine-grade stainless steel reinforcement, these valves offer outstanding longevity while minimizing maintenance demands throughout their life cycle.
Key Engineering Advantage: Every penstock features a door constructed from premium High Molecular Weight Polyethylene (HMWPE / HDPE Grade PE500). This advanced compound provides significantly higher impact resistance, structural toughness, and structural integrity compared to standard commodity PE300 alternatives.
Technical Specifications
Parameter | Technical Details & Standards |
Width & Height Range | Standard nominal dimensions spanning DN100 to DN1000. Custom large-scale configurations and square/rectangular bespoke sizes are available upon technical consultation. |
Flow Medium | Raw rainwater, storm runoff, industrial effluent, municipal wastewater, contaminated greywater, municipal sludge, and process water. |
Core Applications | Stormwater retention management, isolation of drainage lines, active water level balancing in reservoirs, intake channel isolation, pollution containment zones, and wastewater bypass networks. |
Design & Compliance Standards | Engineered and rigorously tested in complete alignment with, and exceeding, the stringent operational criteria of BS7775 and Class 5 of DIN16569-4. |
Pressure & Head Ratings | • Standard Range (DN100-1000): Rated up to 7mWC (Metres Water Column) on both seating and off-seating configurations. • Compact Series (DN100-300): Space-saving variant rated up to 4mWC for low-clearance or reduced-invert manholes. |
Materials of Construction | • Sliding Gate & Guides: UV-stabilized HMWPE (HDPE PE500 containing >=3% carbon black to completely eliminate material degradation and microplastic shedding). • Structural Frame: 1.4401 Marine Grade 316 Stainless Steel for extreme corrosion protection. • Sealing Framework: Resilient, self-adjusting EPDM profile seals for uniform, 4-sided drip-tight closure. (Nitrile/Viton specialized options available for hydrocarbon exposure). • Spindle Assembly: Wear-resistant Polyacetal (POM) drive nut coupled with premium non-rising or rising stainless steel stems. |

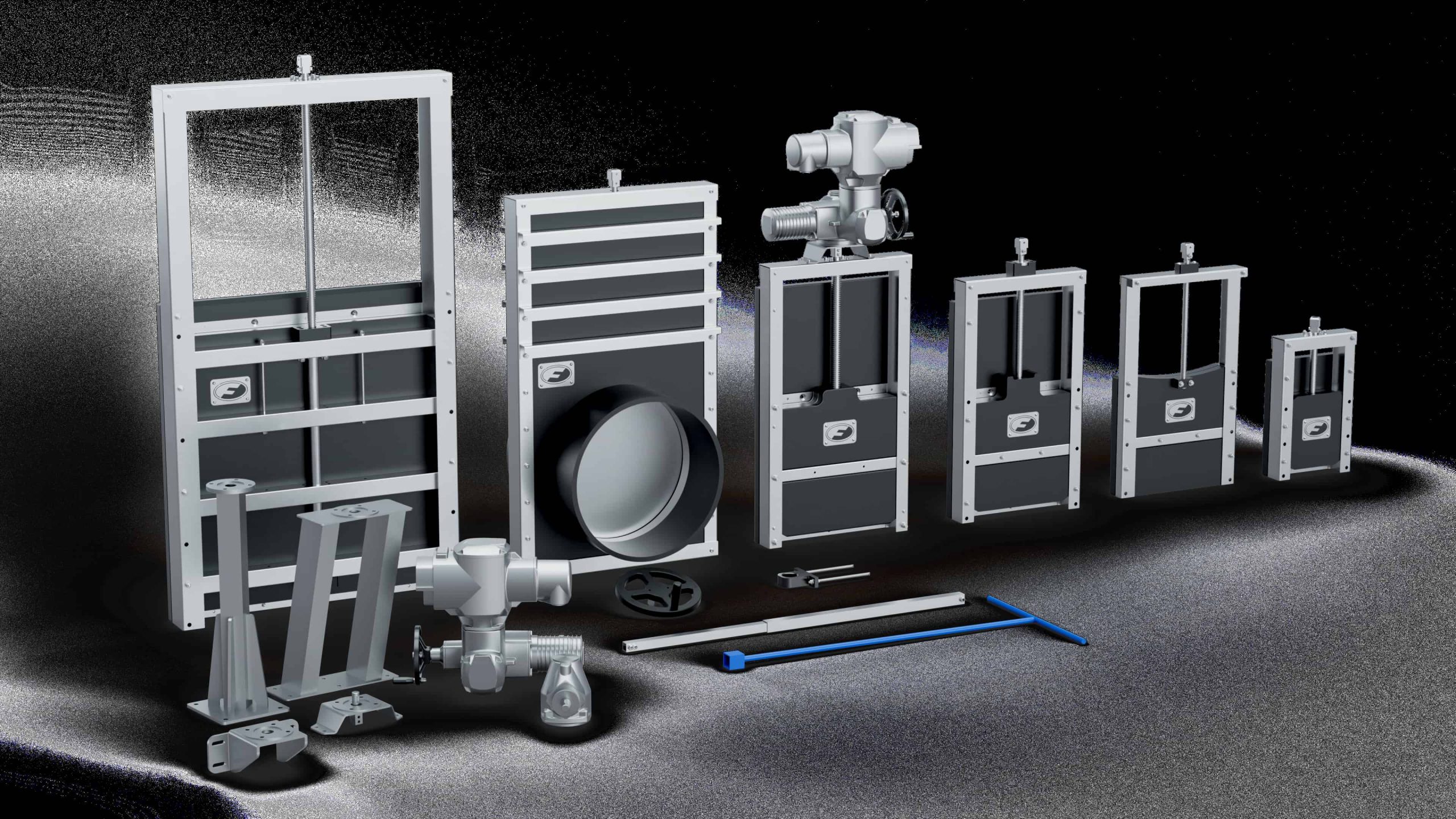

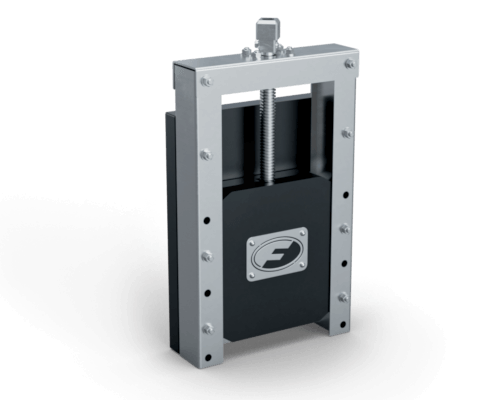

Standard Penstocks

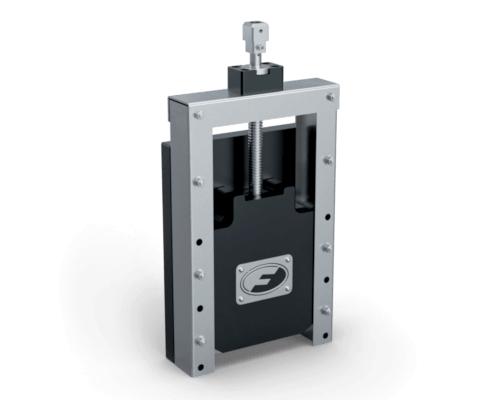

Rising Penstocks

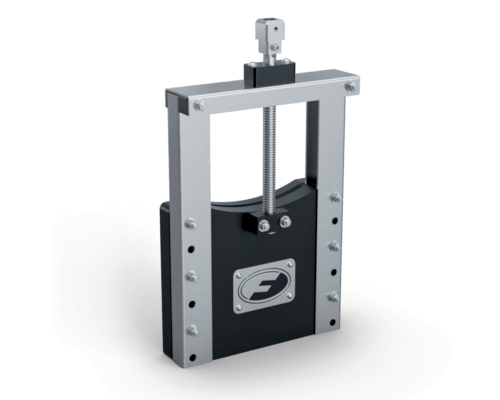

Compact Penstocks
Bespoke Penstocks

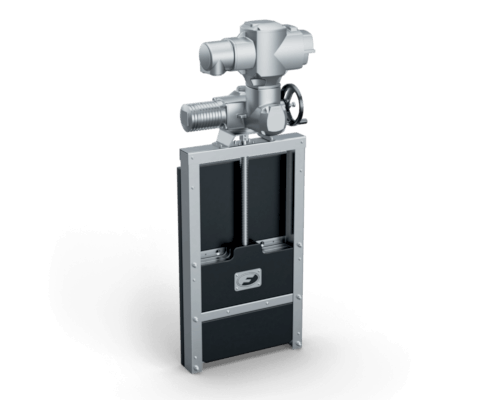

Actuating Penstocks
Intelligent Automation & Pollution Control
Modern environmental management requires proactive, rapid response systems. Laminar goes beyond traditional manual fluid control by delivering intelligent, fully automated penstock ecosystems engineered for emergency pollution containment and dynamic flood mitigation.
Our intelligent control suites incorporate heavy-duty electric actuators, mechanical gearboxes, and specialized control arrays that connect directly with automated monitoring instruments. This establishes an active defense matrix that automatically closes or self-adjusts without human intervention during critical events, such as:
- Continuous Level Transducers: Triggers immediate structural isolation when rising water reaches high-risk flood thresholds.
- Rainfall & Storm Sensors: Provides predictive catchment response to manage flow capacity inside reservoirs and stormwater retention structures.
- Inline pH & Analytical Instrumentation: Detects sudden toxic, chemical, or organic contamination spikes, sealing the site boundary before pollutants reach public waterways.
- Phenol & Hydrocarbon Analyzers: Instantly intercepts industrial spills and hazardous chemical discharges.
- Fire Safety Integration: Seals site drainage channels during factory fires to securely trap contaminated firewater run-off on-site.
These automated systems support flexible industrial communication protocols, enabling direct control via hardwired localized panels, cellular/IoT remote telemetry links, or centralized SCADA networks.
Installation, Mounting, & Operational Frameworks
To accommodate varying asset chambers, structural walls, and deep manhole geometry, our penstocks can be deployed through multiple engineering mounting configurations:
- Direct Surface Mount: The assembly bolts securely onto flat headwalls over circular, square, or rectangular pipe orifices using high-compression rubber sealing tape and heavy fixings.
- Ergonomic Pedestal Mount: Extends the operational spindle up to waist height above deck level, lowering input torque requirements and offering clear access for maintenance or manual handwheel override.
- Chamber & Wall Bracket Offset Mount: Features universal load-bearing wall brackets to handle operational actuator weight within restricted deep chambers without protruding above surface levels.
FAQ
What are the primary advantages of an HDPE penstock compared to metal or ductile iron alternatives?
HDPE (specifically our grade PE500 HMWPE) offers absolute immunity to rust and chemical corrosion, reducing total life-cycle costs. Additionally, HDPE is lightweight, making installation easier and significantly reducing the mechanical torque required to raise and lower the gate. It also holds zero scrap-metal weight value, eliminating the risk of site theft or vandalism.
How do these sluice gates ensure a reliable, drip-tight seal against multi-directional pressure?
Our gates incorporate a high-resiliency, self-adjusting EPDM profile lip seal configuration that seals on all four sides of the frame. This design maintains zero-leakage performance under both seating (fluid pressing the gate against the wall) and off-seating (fluid pushing the gate away from the wall) pressure states up to the rated water column limits.
Can these valves be integrated into existing site automation or BMS networks?
Yes. All automated variants comply with modern mechanical coupling standards (including ISO 5210 interfaces) and can be configured with premium multi-turn actuators. They tie seamlessly into localized automation loops, distributed IoT monitoring arrays, and central SCADA platforms for real-time remote telemetry and override control.
