Product Overview
Laminar’s engineered High-Density Polyethylene (HDPE) Flap Valves represent a high-performance, passive backflow prevention framework designed to safeguard municipal, industrial, and residential drainage infrastructure. Functioning as a high-efficiency one-way check gate installed at pipeline discharges or outfall culverts, these systems permit wastewater or storm run-off to discharge freely while instantly closing under counter-pressure. This automated mechanical operation blocks reverse river or tidal flows from overloading upstream networks.
Constructed using superior materials that excel where conventional metallic configurations corrode, our comprehensive product portfolio delivers exceptional durability in challenging maritime, chemical, and freshwater submerged installations.
Premium Engineering Advantages
By replacing heavy, cast-iron outfall gates with lightweight polymer technology, Laminar provides systems with significant structural benefits:
- Ultra-Low Opening (Cracking) Pressure: The reduced weight of the High Molecular Weight Polyethylene (HMWPE) gate plate ensures the valve opens at a minimal water column height. This prevents the stagnation of low-volume fluid behind the valve, improving catchment discharge efficiency.
- Corrosion Immunity & UV Stability: Formulated with an integrated carbon black stabilizer, our premium HMWPE compound provides complete protection against degradation from direct sunlight. It is highly resistant to acids, bases, industrial solvents, and saline ocean conditions.
- Zero Theft Target Value: Unlike copper, stainless steel, or bronze configurations, HDPE has no structural scrap-metal salvage value, removing the risk of vandalism or theft at remote outfall locations.
- Structural Longevity: Engineered for an operational lifespan of up to 60 years with minimal ongoing maintenance demands.
Versatile Mounting Configurations
To accommodate diverse civil piping architectures, headwall footprints, and environmental behaviors, our valves are available in three specialized engineering styles:
- Wall Mounted Flap Valves (Series FV): Nominal dimensions from DN100 up to DN1500. Designed to anchor directly onto vertical, flat concrete headwalls or chambers. The assembly incorporates a patented co-extruded EPDM sponge seal, which compresses against the structural surface to eliminate the need for field sealants.
- Spigot Mounted Flap Valves (Series FVS): Nominal dimensions from DN100 up to DN630. Engineered to slide seamlessly onto or into an existing pipe end. Option 1: Connected using a high-stability shear-banded coupling over the exterior pipe outer diameter, maintaining a full internal bore. Option 2: Inserted into the pipeline interior using compressive multi-layered EPDM expanding sealing strip wrap.
- Tidal Series Flap Valves (Series FVT / FVTF): Nominal dimensions from DN100 up to DN600. Specialized variants for open marine coastlines, active estuaries, and graded outflow pipelines. These valves are engineered with a fixed 10-degree structural forward inclination to counteract surging wave momentum and changing tidal pressures, ensuring gravity seats the door securely against its frame even during low-flow conditions. Available in both flange-matched (FVTF) and surface wall-anchored (FVT) models.

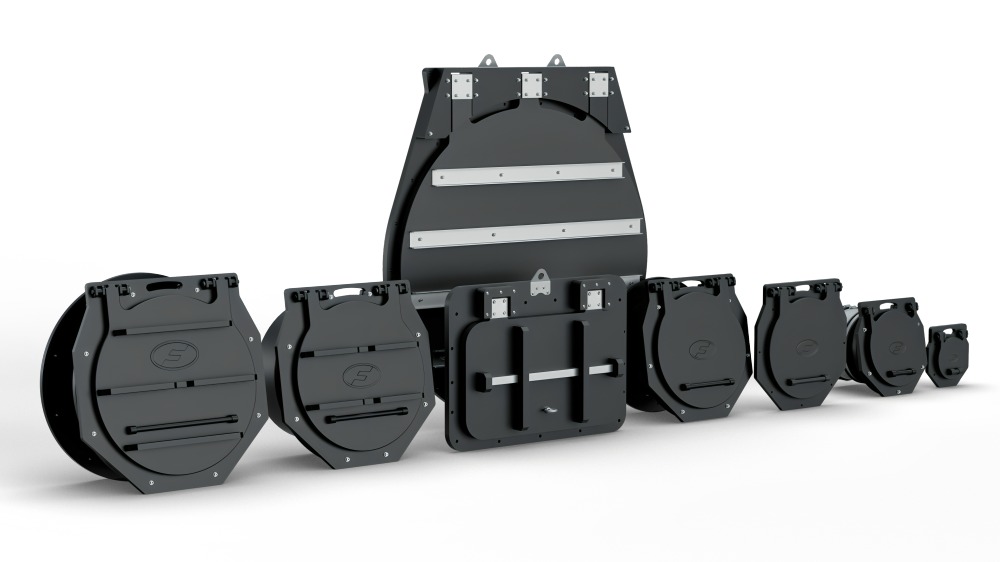

Our Flap Valve Range includes:

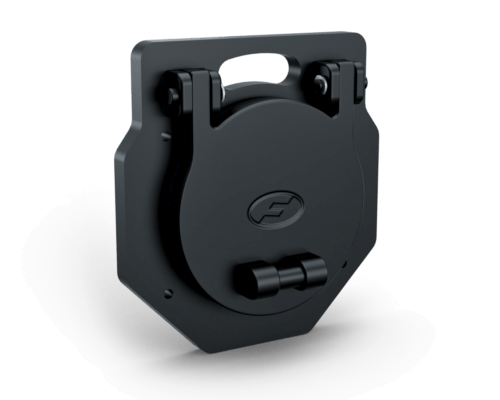

Wall Mounted Flap Valve

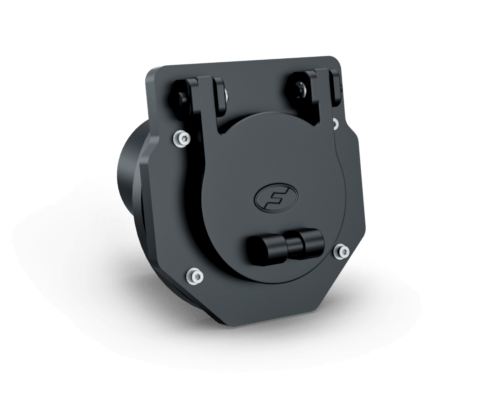

Spigot Mounted Flap Valve

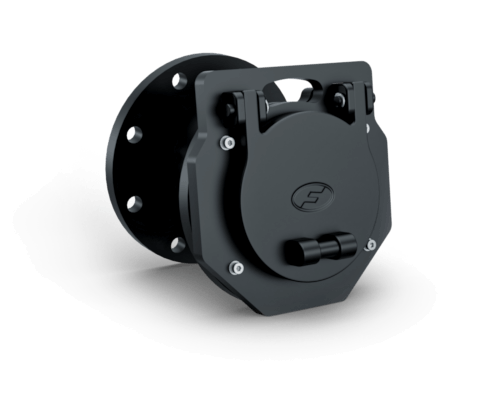

Tidal Flange Mounted Flap Valve

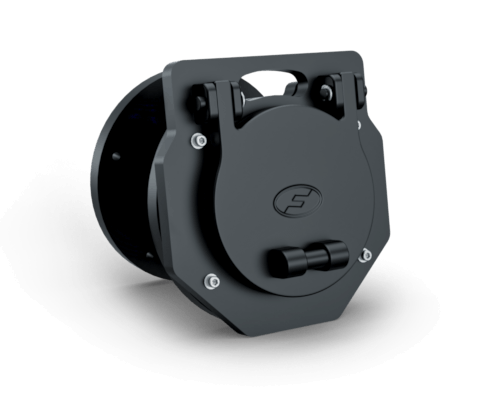

Tidal Wall Mounted Flap Valve

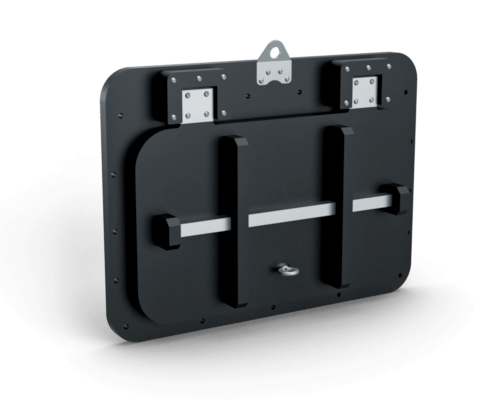

Custom Flap Valve
Technical Specifications Grid
Engineering Property | Verified Technical Performance Standards |
Nominal Sizes (DN) | DN100, DN125, DN150, DN200, DN225, DN250, DN300, DN350, DN400, DN450, DN500, DN600 (Up to DN1500 for Wall Series) |
On-Seating Pressure Resistance | Rated to withstand a minimum constant fluid column head of 7mWC (Metres Water Column) |
Testing & Compliance Regimes | Exceeds all structural criteria defined by BS7775 and Class 5 of DIN16569-4 / DIN19569-4 |
Allowable Thermal Range | Continuous fluid temperatures up to 80°C; intermittent spikes up to 100°C |
Material Base – Body & Gate | Premium UV-stabilized High-Molecular Weight Polyethylene (HMWPE / HDPE Grade PE500) |
Hinge Pin & Fasteners | High-tensile Marine Grade 316 Stainless Steel (Material Standard 1.4401) |
Integrated Seal Material | High-memory EPDM co-extrusion profile conforming to BS EN 681-1:1996 |
FAQ
Why should an engineer select an HDPE flap valve over a standard cast-iron check valve?
Cast iron valves are heavy, leading to high shipping and installation costs, and they are highly prone to aggressive rust formation that can jam the door over time. Our polymer HMWPE valves are completely immune to chemical and saltwater oxidation. Because they are lightweight, they require significantly less hydraulic pressure to actuate, reducing fluid backup in upstream lines.
What does the "Cracking Head" specification mean for performance?
The “cracking head” or opening threshold represents the exact depth of fluid required behind the gate to break the seal and start the discharge process. For instance, a standard DN150 wall-mounted model operates with an ultra-responsive cracking threshold of approximately 25mm of water column depth. This ensures highly responsive performance during low-flow scenarios.
Are these backflow gates suitable for installations exposed to direct sunlight and seawater?
Yes. The polymer structure is formulated with a carbon black stabilizer, providing permanent resistance to ultraviolet radiation without material breakdown or embrittlement. The combined use of PE500 and 316 marine-grade stainless steel ensures long-term reliability in harsh coastal and intertidal zones.
